CPU6000 Series

A Step‑Change in TCMS Performance

Our latest high-performance CPU6000 Series provides state-of-the-art cybersecurity features and serves as the processing core of our next‑generation TCMS platform.

badge
PENDING COMPLIANCE:
EN 50155, EN 45455-2, EN 50716, EN 50126, EN 50129, EN 62290, IEC 61131, IEC 61375, IEC 62443-4-2, IEC 62425, IEC 63452 (upcoming), CLC/TS 50701
Technical Specification for CPU6000 Series
Download here

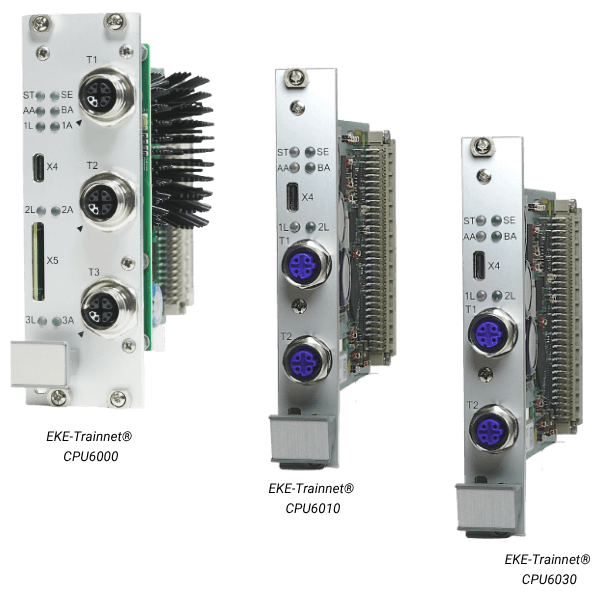

One platform. Three performance options.

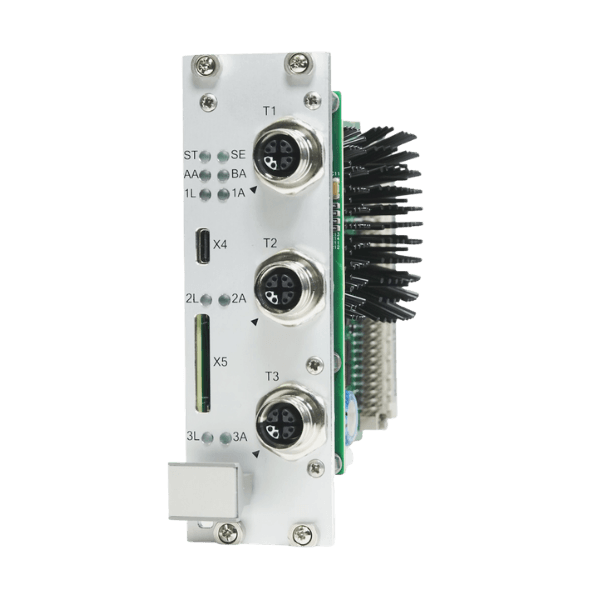

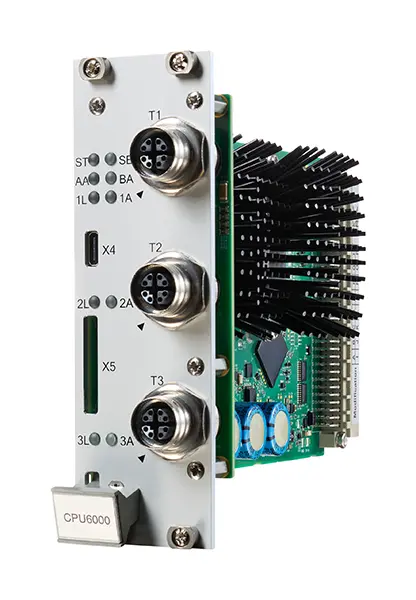

CPU6000

For complex applications requiring high processing power

The CPU6000 features a high-performance multicore processor. It is typically used for TCN and VCU applications requiring high or complex processing power.

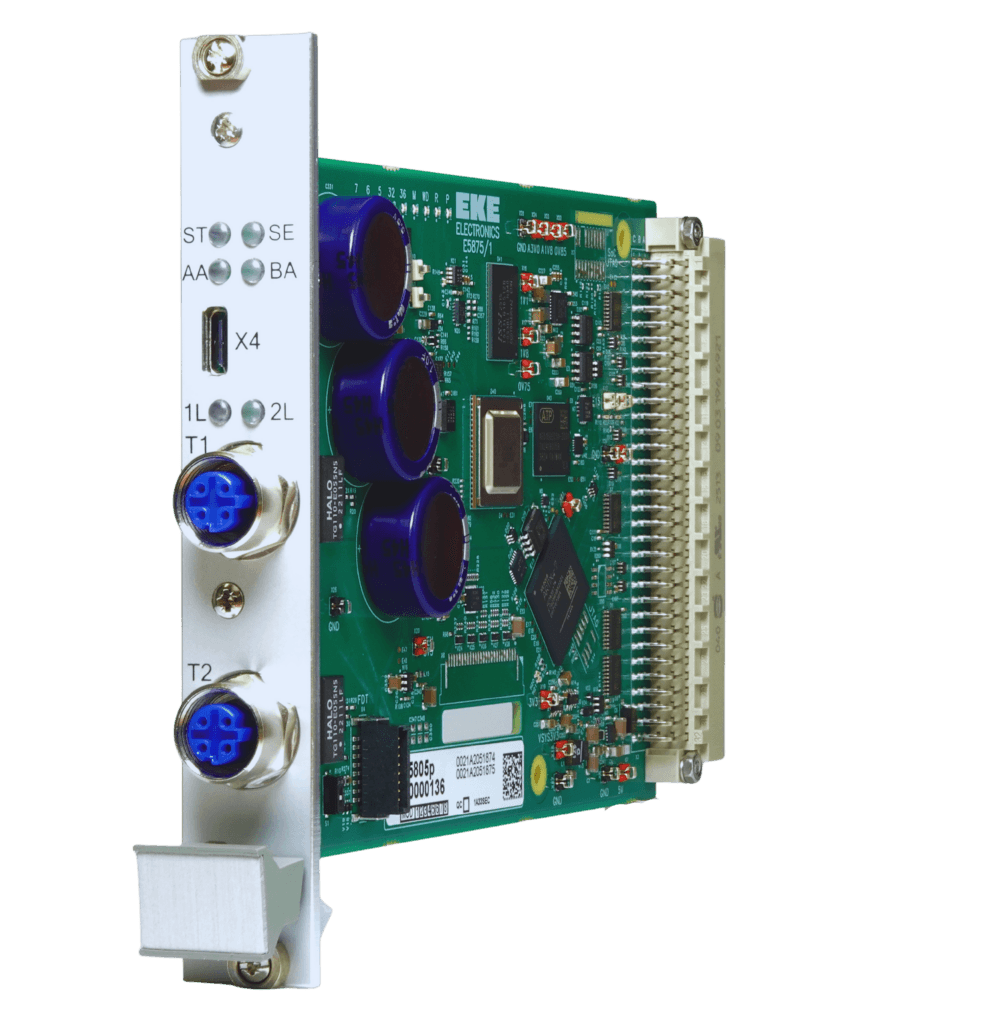

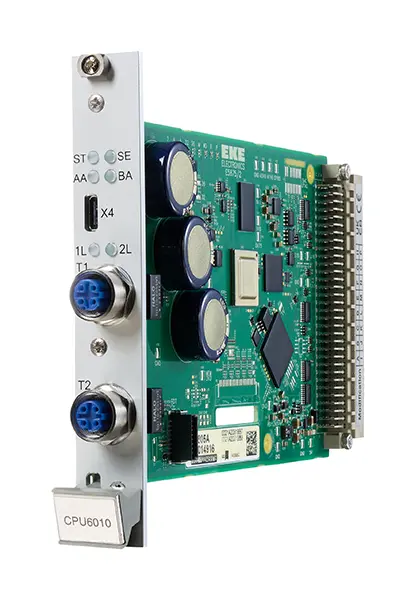

CPU6010

For standard TCMS
applications

The CPU6010 has a high-performance single-core processor. It is the preferred choice for TCN and VCU applications handling deterministic control functions without intensive computational demands.

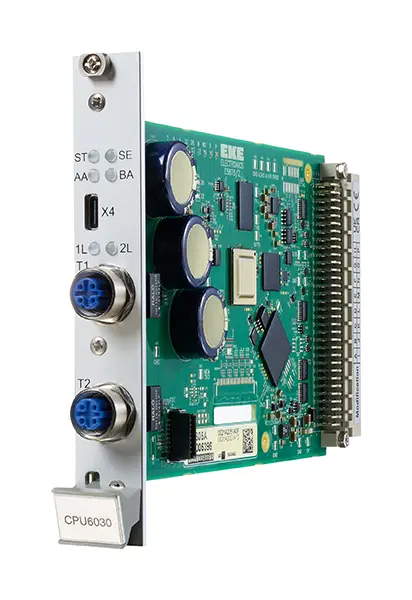

CPU6030

For RIOM and Gateway applications

The CPU6030 is designed specifically for remote I/O and gateway functionalities. Optimised for these roles, it provides the necessary interfaces and processing capabilities to ensure efficient data exchange and reliable connectivity within complex train control architectures.

Key Features

The CPU6000 Series includes the CPU6000, CPU6010 and CPU6030 modules.

Core features include:

  • Designed in accordance with the Cyber Resilience Act (CRA), Regulation (EU) 2024/284
  • Meets railway-specific requirements defined in the upcoming IEC 63452, supporting up to Security Level 2
  • Certified to SIL 2 according to EN 50129 and EN 50716
  • Supports SDTv2 (Safe Data Transmission)
  • Implements TRDP
  • Dual homing
  • Built for Grade of Automation (GoA) up to Level 4 in compliance with EN 62290

Compare each CPU

Feature

6000

6010

6030

Cores

6

1

1

Dual Homing

Flash Memory

16 GB

16 GB

16 GB

Processor RAM

2 GB

1 GB

1 GB

Ethernet Ports (1 Gbps)

3

0

0

Ethernet Ports (100 Mbps)

0

2

2

Central Processing Unit

up to 2 GHz

1 GHz

400 MHz

USB-C Port for Terminal

1

1

1

Designed and certified for SIL 2

Redundant Ethernet connectivity

IEC 62443-4-2 up to SL 2

The products, specifications, features and design are subject to change without notice.

Technical Specifications

Dimensions (W x H x D):
8 TE x 3 U x 160 mm (CPU6000)
4 TE x 3 U x 160 mm (CPU6010/CPU6030)

Weight:
295 g (CPU6000)
193 g (CPU6010/CPU6030)

Temperature Range (operational):
-40 °C…+70 °C

Power Consumption:
5 W (CPU6000)
2 W (CPU 6010/6030)

MTBF (40 ºC ambient temperature):
> 1 000 000 h

Serial Console:
USB-C

Central Processing Unit:
2 GHz multi-core ARM processor with 64-bit instruction set (CPU6000)
1 GHz single-core ARM processor with 64-bit instruction set (CPU6010)
400 MHz single-core ARM processor with 64-bit instruction set (CPU6030)

Ethernet Interfaces:
3 x 1 Gbps, connector type M12,
X-coded (CPU6000)
2 x 100 Mbps, connector type M12,
D-coded (CPU6010/CPU6030)

Processor RAM:
2 GB LPDDR4 SDRAM, bus speed up to 2666 MB/s (CPU6000)
1 GB LPDDR4 SDRAM, bus speed up to 1600 MB/s (CPU6010/CPU6030)

File System & Event Logging Flash Memory:
16 GB eMMC Flash

Front Panel Memory Card Slot:
SD Card, SDR104, for firmware updates and device recovery (CPU6000)

Real-time Clock:
Reserve time of at least 30 days
Accuracy better than 10 seconds in 50 days (in room temperature)

The products, specifications, features and design are subject to change without notice.

Scalable range for optimal fit

The CPU6000 Series offers a scalable selection of processing options, from high performance multicore units to cost optimised single core modules. With multiple performance variants, you can select exactly the processing capability each system requires. This avoids unnecessary cost or over specification while ensuring the system remains efficient, scalable and well matched to the requirements of different train designs.

CRA Ready with cybersecurity compliance

The CPU6000 Series is designed in accordance with the Cyber Resilience Act (CRA), Regulation (EU) 2024/2847, ensuring compliance with the latest European cybersecurity standards.

It also meets with railway-specific requirements defined in the upcoming IEC 63452, supporting up to Security Level 2.

The architecture provides the capability to run intrusion detection agent software, enabling proactive threat monitoring and enhanced system protection.

A cryptographically verified secure-boot chain acts as a foundational security mechanism, ensuring that only trusted, manufacturer-approved software runs on a device.

Frequently Asked Questions

The CPU6000 Series is EKE-Electronics’ latest generation of processing modules for Train Control and Management Systems (TCMS). It provides significantly increased computing performance compared to previous generations, enabling more advanced applications, greater system integration, and long-term scalability for train projects.


The CPU6000 Series can be used in a wide range of TCMS applications, including:

  • Vehicle Control Units (VCU)
  • Train Control and Management Systems (TCMS)
  • Gateway applications
  • Safety applications (up to SIL 2)
  • Data processing and communication
  • Remote diagnostics
As train systems become increasingly connected and software-driven, they require more computing power than previous hardware generations can provide. The CPU6000 Series was developed to meet these growing requirements while maintaining the reliability expected in train applications.




The CPU6000 Series delivers a significant increase in processing performance compared to previous generations. This additional capacity allows customers to run more complex applications, process larger amounts of data, and support future software developments without being limited by hardware performance.
Yes. The CPU6000 Series has been designed to support migration from earlier EKE-Electronics platforms. The exact migration path depends on the existing system architecture and application requirements.

Yes. Selected CPU6000 Series modules can be used in safety-related applications up to SIL 2 when implemented as part of an appropriately designed and certified system. The CPUs are SIL 2 certified according to EN 50129 and EN 50716. They also support SDTv2 (Safe Data Transmission) for secure communication in safety-related systems.

Yes. The CPU6000 Series is designed in accordance with the Cyber Resilience Act (CRA) and supports railway cybersecurity requirements, including alignment with IEC 63452 requirements up to Security Level 2. Advanced cybersecurity features help support long-term secure operation throughout the system lifecycle.

Yes. The CPU6000 platform supports applications for automated train operation up to Grade of Automation (GoA) 4 as defined by EN 62290.

The CPU6000 and CPU6010 are capable of supporting up to 5,000 TRDP nodes while maintaining efficient processor utilisation, making them suitable for large and complex train communication networks.

Yes. The CPU6000 Series is designed as part of the EKE-Trainnet® platform and works with EKE I/O modules, communication modules, and other system components to create complete TCMS solutions.

The CPU6000 platform supports CODESYS®-based development, providing a modern IEC 61131-compliant environment for application development and maintenance.


The increased processing capacity provides headroom for future software enhancements, additional functionalities, and system integration requirements. This helps reduce the risk of hardware limitations during the operational life of the train.


Yes. The CPU6000 Series is suitable for both new train developments and modernisation projects, helping operators and manufacturers extend system capabilities while benefiting from current hardware technology.
